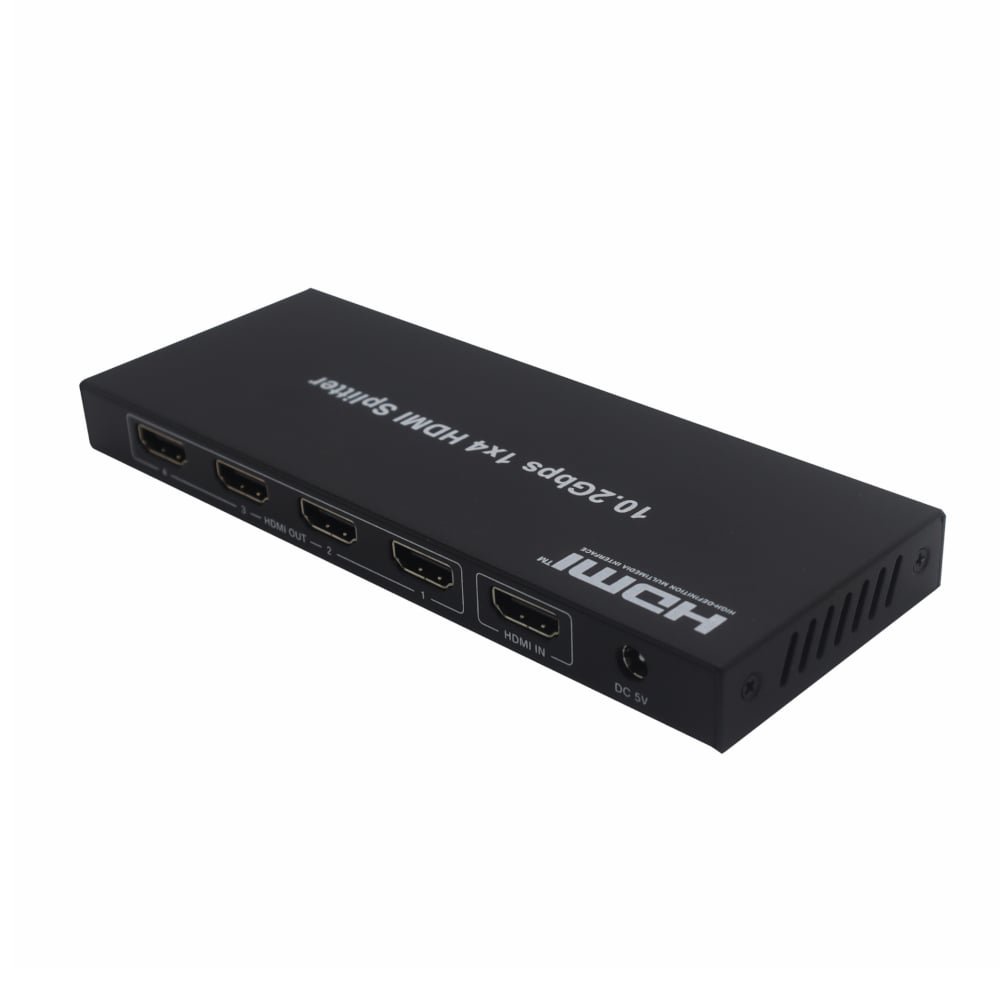

HDCVT 1×4 HDMI 1.4 Splitter 4K with EDID Management

The HDCVT 1×4 HDMI 1.4 Splitter 4K with EDID Management is a high-performance solution for distributing a single HDMI input to up to four outputs simultaneously. Designed for seamless video and audio performance, it supports resolutions up to 4Kx2K at 50/60Hz YCbCr 4:2:0, delivering stunning clarity for all your content. With HDR and Dolby Vision compatibility, the splitter ensures a dynamic visual experience with vibrant colours and enhanced contrast. Its HDCP 1.4 compliance guarantees smooth playback of protected content, making it ideal for home theaters, conference rooms, or retail displays.

This splitter offers 10.2Gbps video bandwidth, ensuring stable and reliable signal transmission for a range of resolutions, including 3D and multiple colour depths up to 12-bit. The EDID management feature allows you to select between STD and TV modes via a convenient switch, providing optimal compatibility and performance with connected devices. Supporting a wide variety of audio formats, such as Dolby Digital, DTS-HD Master Audio, and DSD, it ensures an immersive audio experience alongside its superior video capabilities.

Built with a durable metal enclosure, the HDCVT 1×4 HDMI Splitter is easy to install with a plug-and-play design, requiring no additional setup. It includes robust ESD protection to safeguard against electrostatic damage, making it a reliable choice for long-term use. Whether for professional or personal applications, this splitter combines advanced functionality and user-friendly features to deliver unparalleled performance for all your HDMI distribution needs.

FEATURES:

• HDCP 1.4 compliant
• Support video bandwidth 10.2Gbps
• Video resolution is up to 4Kx2K@50/60Hz YCbCr 4:2:0
• Supports 3D, HDR, and Dolby Vision

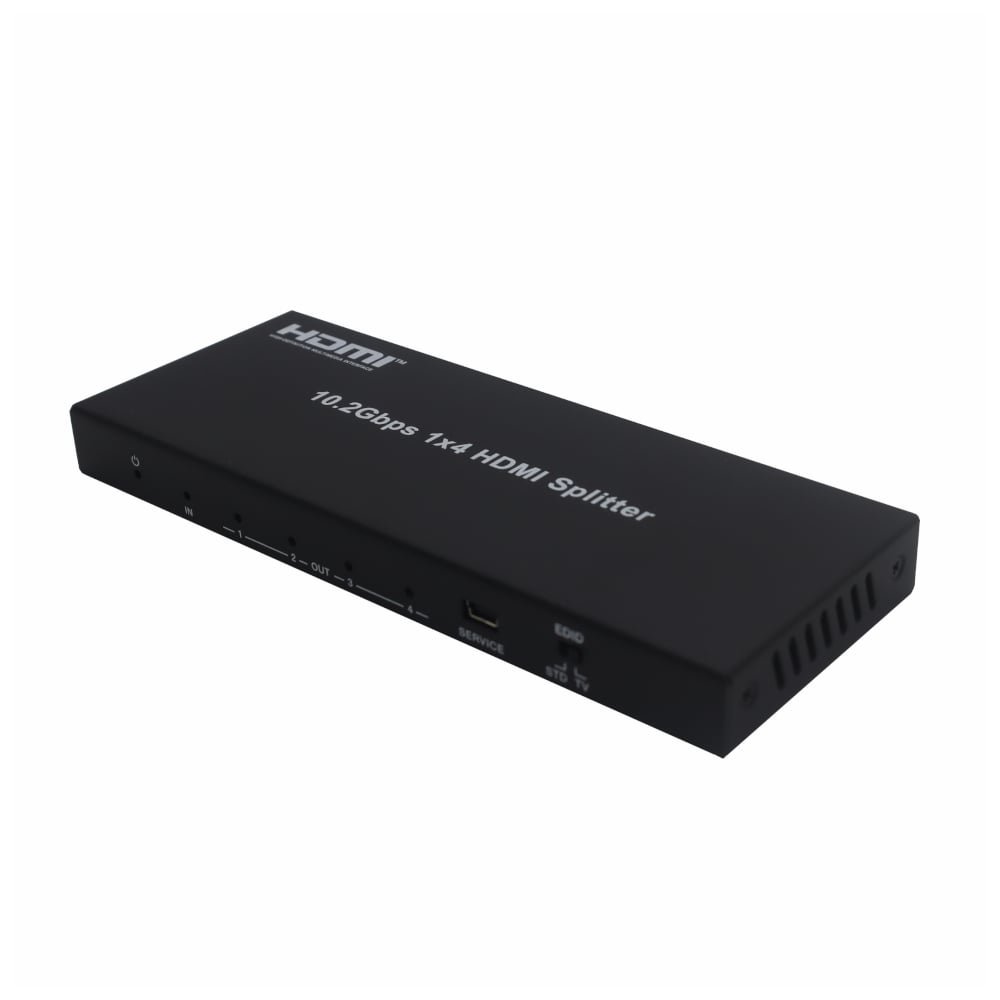

• EDID can be selected with STD and TV modes via a switch on the panel
• Easy to install plug-and-play

SPECIFICATIONS:

• HDCP Compliance: HDCP 1.4
• Video Bandwidth: 10.2Gbps
• Video Resolution:
  • 4K2K 50/60Hz 4:2:0
  • 4K2K 30Hz 4:4:4
  • 1080p, 1080i, 720p, 720i, 480p, 480i
  • All HDMI 3D TV formats
  • All PC resolutions including 1920 x1200
• 3D Support:  Yes
• Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Colour Depth: 8/10/12-bit
• HDMI Audio Formats:
  • PCM2.0/5.1/7.1CH
  • Dolby Digital/Plus/EX
  • Dolby True HD
  • DTS
  • DTS-EX
  • DTS-96/24
  • DTS High Res
  • DTS-HD Master Audio
  • DSD
• HDR Formats; HDR10, HDR10+, Dolby Vision
• ESD Protection: Human-body Model:
  • ±8kV (Air-gap discharge)
  • ±4kV (Contact discharge)
• Input Ports:
  • 1x HDMI Type A [19-pin female]
  • 1x SERVICE port [5-pin, mini USB-B]
• Output Ports: 4x HDMI Type A [19-pin female]
• Housing: Metal Enclosure
• Power Supply:
  • Input: AC 100~240V 50/60Hz
  • Output: DC 5V/1A
• Colour: Black
• Product Dimensions: 16.3 x 6.3 x 1.6 cm
• Product Weight: 260g

WHAT’S IN THE BOX:

• HDCVT 1×4 HDMI 1.4 Splitter 4K with EDID Management – Black x1
• Charging Cable x1
• User Manual x1
