Xiaomi Wireless Router AX3200

The Xiaomi Mi AX3200 Dual Band Wireless Router uses the latest generation in Wi-Fi standards. Thanks to its higher transfer rates, the AX3200 allows you to easily enjoy nearly twice the speed of a typical AC1200 router. The Wi-Fi 6 router significantly reduces latency and unresponsiveness in end devices, even when multiple users are using multiple devices at the same time. It also features dual-core quad-threaded processors with a single-core clock speed of up to 1.35GHz. With overall performance improvements, your internet connection is more enjoyable and diverse. Thanks to the AX3200, you can now glide through the new digital era with true ultra-fast network responsiveness.

The Xiaomi Router AX3200 offers a dual-band wireless bandwidth with both 2.4GHz and 5GHz. The two bands do not interfere with each other and have a combined theoretical wireless speed of 3202Mbps maximum. Enjoy ultra-fast Internet access, stable signal coverage, high-speed usage, seamless HD videos, and large-scale online gaming. MU-MIMO technology allows the multiple antennas of your Xiaomi Router AX3200 to provide a network connection to multiple devices simultaneously. If a router is a highway, this one comes with extra lanes that both increase transfer rates and prevent unresponsiveness in your devices.

It also features OFDMA technology which allows your router to send data to multiple end devices with just one transmission, whereas a traditional router would need to send multiple transmissions. OFDMA makes for more efficient transmission and reduced latency so you can use multiple devices at the same time, and enjoy instant responsiveness when online gaming, whether that be large-scale or via your smartphone. Beamforming technology concentrates the Wi-Fi signal towards your connected devices, providing better Wi-Fi range and network performance. The router can strengthen the Wi-Fi signal for the corresponding direction, improving quality and stability, and expanding the effective range.

FEATURES:

• Fast 3202Mbps Wi-Fi 6
• Dual Band 2.4GHz and 5GHz
• Multi-device transmission with less congestion
• Supports 4×4 MU-MIMO
• Mesh networking support

SPECIFICATIONS:

• Hardware configuration
  • Processor: MediaTek Filogic800 Dual-core A53 1.35GHz CPU
  • Memory: 256MB
  • 2.4GHz Wi-Fi: 4×4 (supports up to IEEE 802.11n protocol, the theoretical maximum rate is 800Mbps)
  • 5GHz Wi-Fi: 4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)

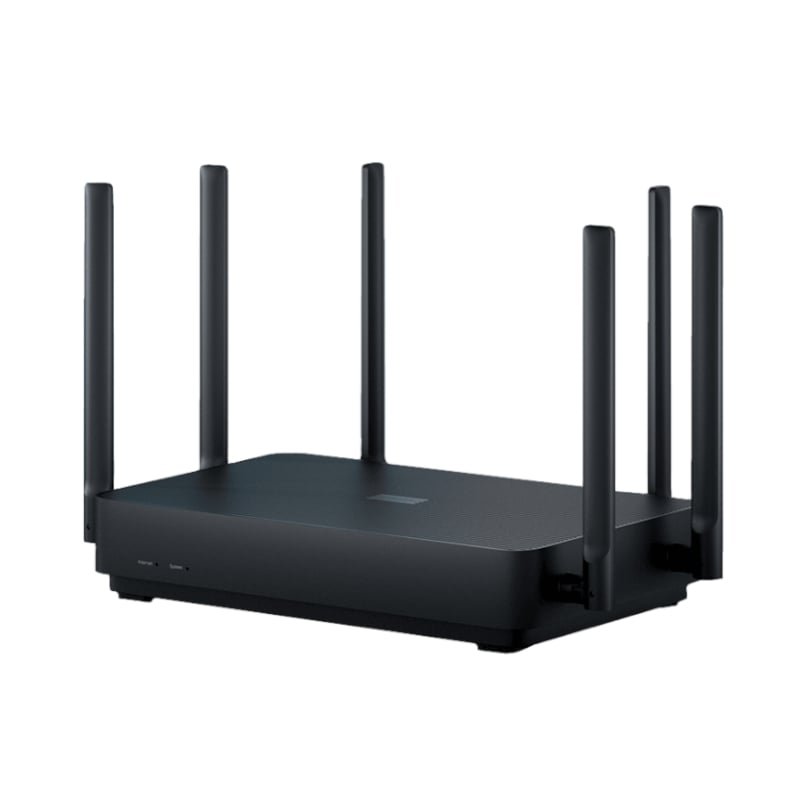

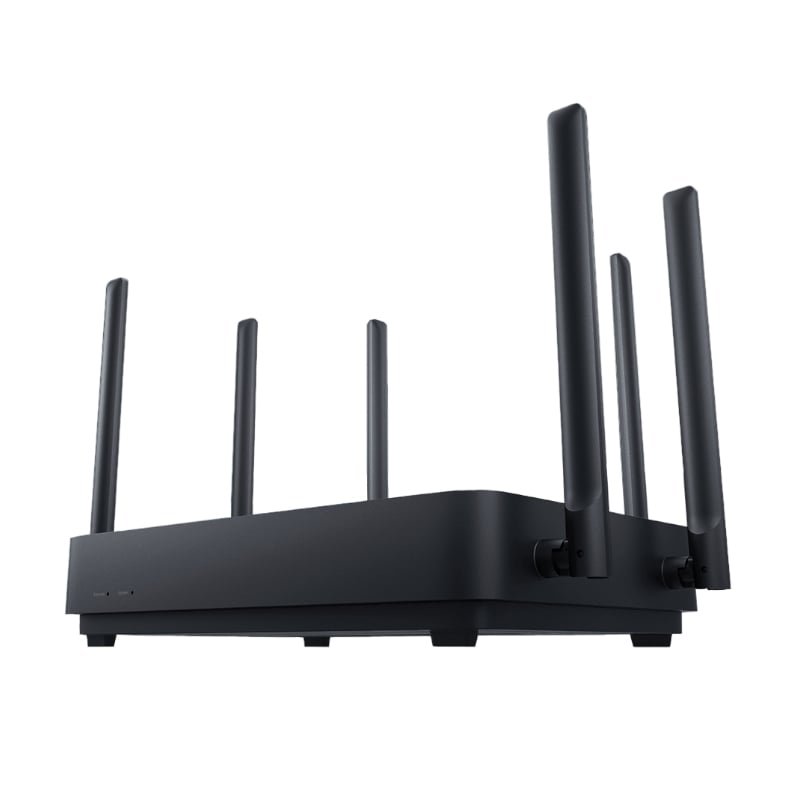

  • Antennas: External omnidirectional antennas
  • Total Ports:
    • 10/100/1000Mbps adaptive WAN port (Auto MDI/MDIX) ×1
    • 10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX) ×3
  • LED indicator light: 2 lights, incl. System indicator × 1, Internet indicator × 1
  • System reset button×1
  • Mesh networking button×1
  • Power input port×1
  • Protocol standards: IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab
• Wireless specifications
  • Dual-band: 2.4GHz, 5GHz
• Modulation:
  • 11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
  • 11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps)
  • 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.256QAM.
  • 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
  • 11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
• Software specifications
• Operating system: MiWiFi ROM, a smart router operating system based on OpenWRT
• Wi-Fi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption
• Management applications: Supports Web, Android, iOS
• Colour: Black
• Product Dimensions: 28.4 × 18.6 × 18.6cm

WHAT’S IN THE BOX:

• Xiaomi Mi AX3200 Dual Band Wireless Router  – Black x1
• Power Cord x1
• Ethernet Cable x1
• User Manual x1
